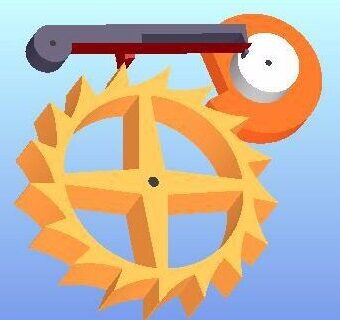

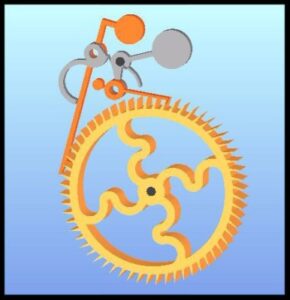

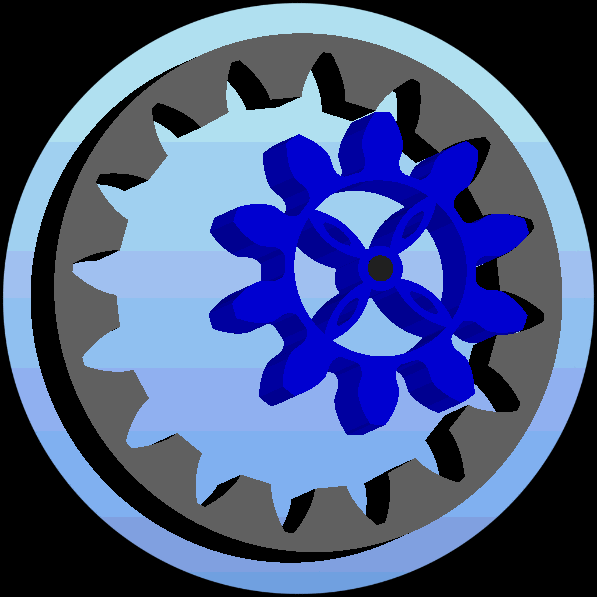

Welcome to Gearotic Motion. As a company, Gearotic Motion has grown into multiple stand alone software programs. These are known as Gearotic CAD (Gear Template Generator), Auggie(CAM controller), Vexx (AutoCad) and Ticker(Nuts and Bolts). All of these software programs require a personal computer or laptops to operate effectively, the faster/newer they are, usually the better and faster it will work for you. All software packages are downloadable from here, Gearotic Software Download, and we suggest you, install and try the demo to get a feel on how we do things at Gearotic . As always, Gearotic Motion aims to assist anyone with geared mechanical creations, and our support workshop is always done on Gear Head Corner forum should you have any questions. Gearotic Motion began as a CAD gear template generator, and over time developed into CAD utility packages, so we hope you’ll find it all interesting and perhaps handy. Gearotic CAD generates most gear types found today, combined or individually, and allows user to simulate or animate their creation. Inside, a variety of gears types mechanisms can be found. It includes Spur Gears, Cage Gears, Non Circular Gears, Escapements, Planetary Gears, Sprocket Gears, Timing Gears, Pulley, Bevel Gears, Root Blowers, Geneva Mechanisms and Rack and Pinions to mention a few. We also generate toolpaths for CNC modes, and export as Dxf or STL depending on selection. Also, spur gears can be generated in an helical or bevel form, and can be outputted as Straight, Helix or in a Zerol format. Again, these outputs include STL files for 3D printing, 2D DXF format for most Cad programs, 1:1 scale paper printouts for non CNC woodworking patterns, and finally G-Code for all CNC use.
Gearotic Motion family of software packages offer various modules to help make your creations that more unique and desirable. Software offers things like Boxing, Indicators, Spokes, Slicing from an STL object, Flourishes, Harris Vines and more, may be useful to any individual looking for this type of thing.
“Vexx” is our draw platform, it is a stand alone program used for as our main draw slate and has its own icon on you desktop when installed. Next was the introduction of “Vecs” found inside Auggie, via (CON) button, it is our simplified kinetic platform, allowing visualization of mechanical movement behaviour. Since then, “Ticker” has replaced “Vecs”, and is just another one of those handy CAD tools if your looking for Nuts and Bolts, Shafts, Acme Screws and more. Once Licensed, these all all export into STL for 3D printing or Milling. We’ve been told this module is very versatile and has endless possibilities, plus allows for sectional printing, when those bigger jobs come around.
Remember our once licensed, always licensed policy rule. The only criteria here is to make sure your credentials match our database data supplied during inital purchase, including email address. We invite you to try Gearotic, feel free to contact us on Gear Head Corner Forum for help or just to say Hi. Have Fun.
Click inside Module to explore farther.
Gears Specialty Gears Functional Gears Cage Gears
Specialty Items Image Processing Software Outputs CNC
Please note that once software is downloaded and installed, it becomes our DEMO version. However, whenever a license is installed, the same software automatically reverts to a fully licensed version without any special requirements. Our License cost $120 and is for a lifetime activated entity, all upgrades are free plus license stays installed during any upgrades to simplify things for the user.Click Here to Purchase a License
Let it be mentioned that Gearotic Cad may be prone to trigger “false warnings or related errors” from some antivirus programs out there, either when you first download or first install it on your computer. This is likely due to a trigger sensitivity which is set from the sequence of the letters found in our name, or because it is missing a digital signature. To briefly explain, since we constantly update with new tools and features in these programs, a Microsoft signature license isn’t really feasible without breaking the bank. Much effort was attempted to improve this situation such as this new web site verse the original (www.gearoticmotion.com). along with a new modern software build installer. This has improved things remarkably, however we still experience some issues from time to time.
List of available software from Gearotic Motion to download.
Current Versions of software and their links.
1) – This is our current stable version of Gearotic version 3.xx. It includes the old Gearotic unlinked as Gearotic1.0.exe in the root folder, and Vexx as well, about 46 MB in size.
2) – This is the Win10 installer for Gearotic CAD and includes the program Ticker, which is a 3d modeler for creating gears, nuts, bolts and more in 3d for 3d printing. Ticker includes the capability to create Worm, Spur, Bevel
or helical gears in many forms, and create shafts and Bolts of many standard types. Its size is much larger as a result, 190MB in size.

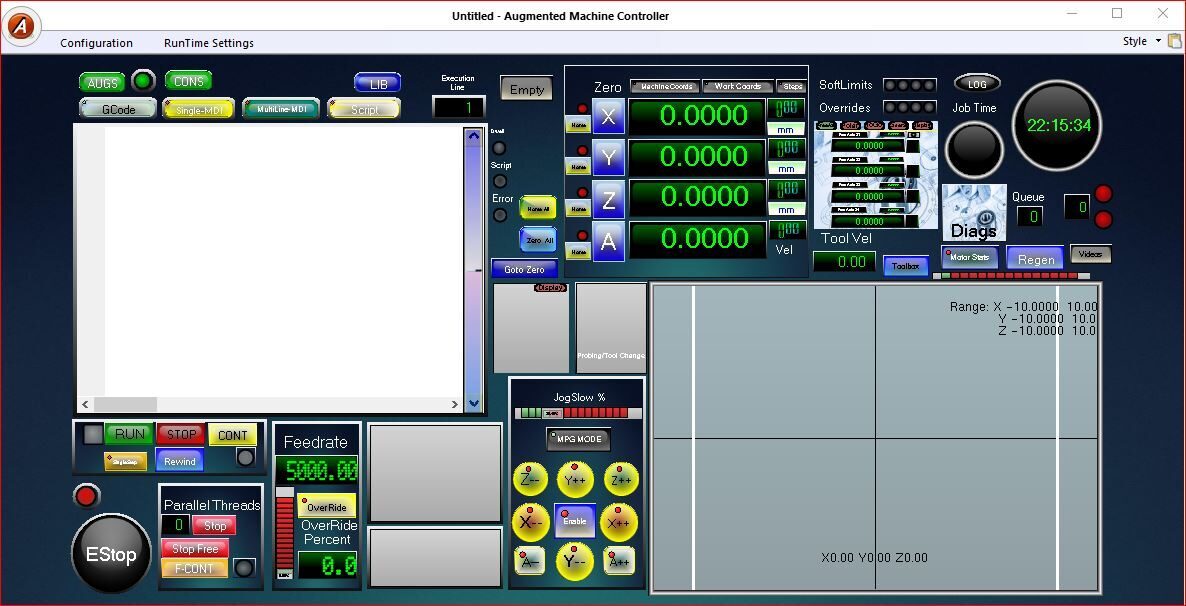

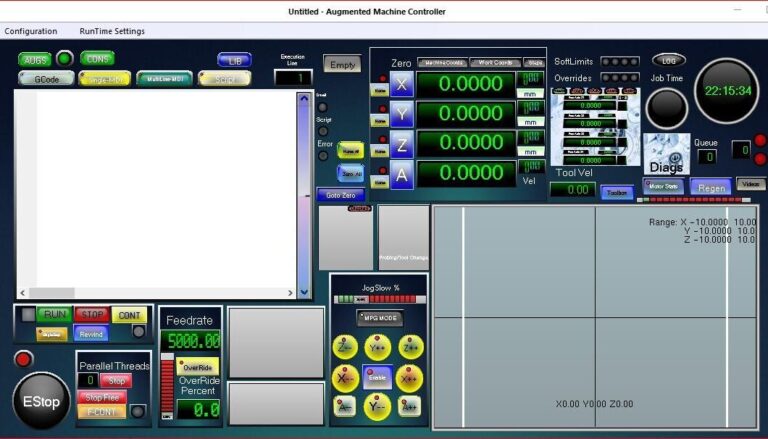

3) – This is the downloader for Auggie, a scripted motion controller with two 4-axis trajectory planners, 6th order jerk limited trajectory execution. Scripted GCode and an advanced photographic engraving laser control interface.
It requires the use of a Pokeys 57CNC network IO device from pokeys.com. This program is meant for the advanced hobbyist, has a steep learning curve if you wish to modify it, but many examples exist on this forum of user experiences
and how they hooked up their lasers or CNC to Auggie.
We hope you enjoy, we always welcome new ideas, so please join us on our “Gear Head Forum“.
All support be done on the forum, so everyone benefits form the answers. You may also contact us directly at support@gearotic.com. You need not to be licensed to join our forum, we welcome everyone to the discussions.
We also have some project samples, these may be downloaded from this site inside the” Clocks and Project” gallery.
Have fun..
